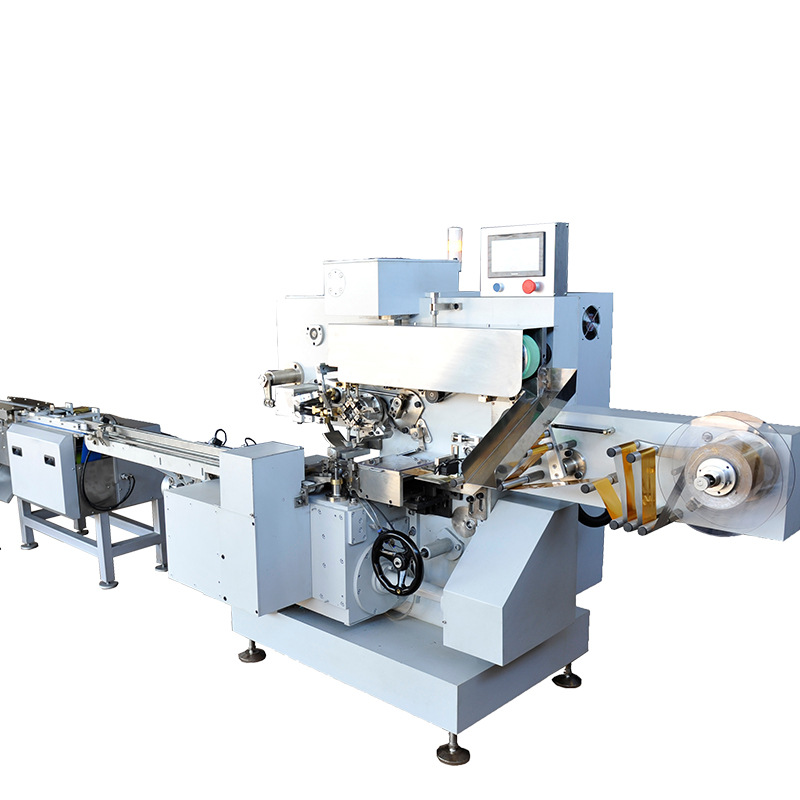

Bottle Chocolate Packing Machine

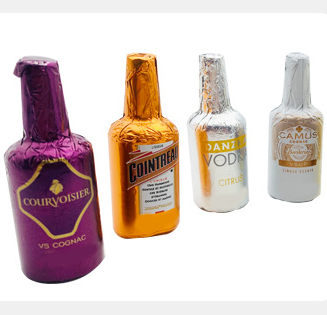

- This food packing machine is suitable for automatic material handling and packaging of chocolate and candy in the shape of wine bottle, cylinder and cone;
- Adopt precise high-speed cam transmission mechanism and reasonable mechanical design to improve the production efficiency and stability of the whole machine operation;
- The servo system of Panasonic brand, PLC and multi position sensor control system are adopted to realize automatic correction of paper, no material, no paper feeding function and high yield;
- The touch screen of Panasonic brand is used to realize human-computer interaction, display in Chinese and English, and directly set various parameters, which is easy to operate;
- Full automatic material management system with patented technology;
- 6. Automatic alarm function for abnormal conditions, convenient maintenance
Technic Data:
Packing speed: 260~300 pcs/minute
Product size: φ12x15mm- φ25x60mm (DiamterxLength)
Electric data: AC380V±10% 50HZ
Power: 4KW
Machine dimension: 4500X1600X1560mm
Machine weight: 1500kg
Packing material: Aluminum foil paper.
Air pressure: 0.6Mpa
