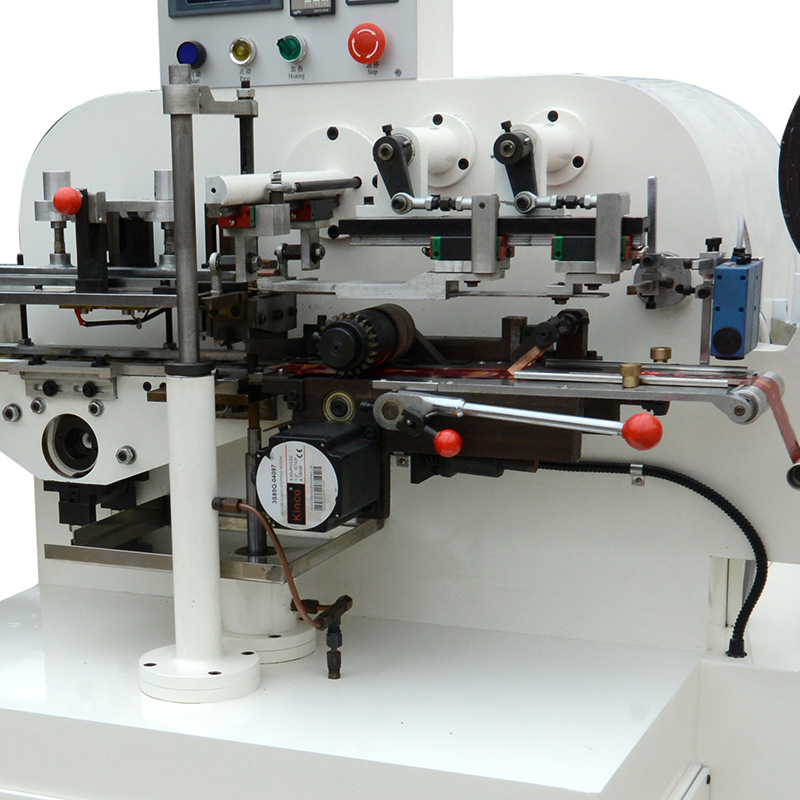

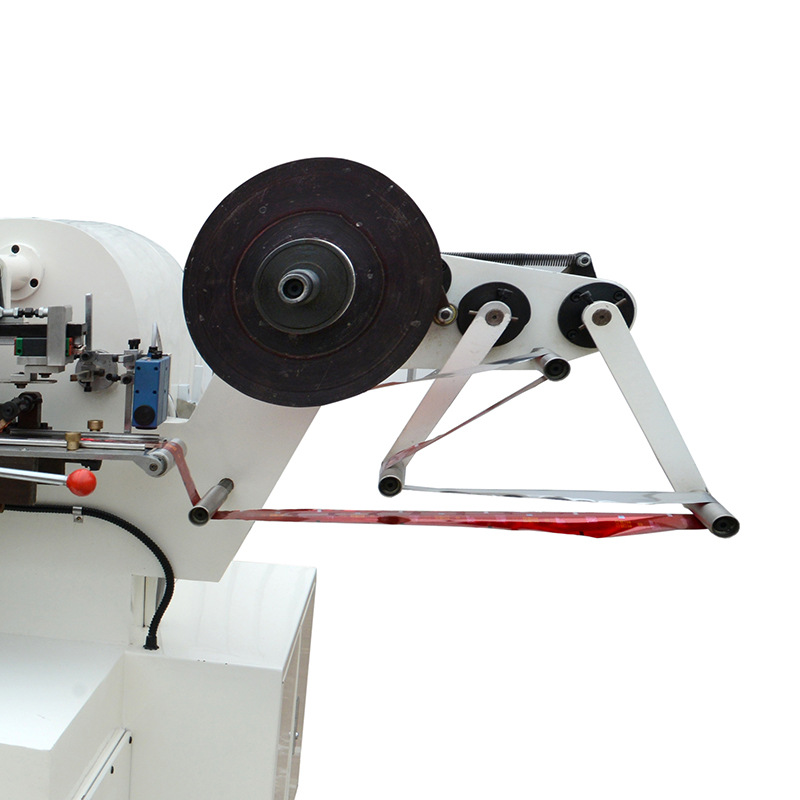

Double Twist Packing Machine
- It applies for double twist packing candy with the shapes of rectangle, ellipse, waist-round, cylindrical, spherical, square and beef also all food with regular shapes, easy to operate, high effency, manpower saving, pretty style, low noise, working smoothly, low fault occurance, convenient to repair.
- Main core part of this machine adopts imported, new style. High-density Cam indexing unit and cam gear can reach exact movement.
- AC mtor with transducer, controlled with infinite speed control, high precision, energy saving to prolong its life, also it can be adjusted when its working.
- Controlled by full auto built-in computer, inspected by the international advanced photoelectric sensor, traced bi-directional with fast speed, 100% packing rate, no empty package.
- Overload protection, creepage protection, no film with prompt alarming.
- Food touch parts adopts stainless steel, good smoothless, easy to clean, totally meets standard of food sanitation.
- Single and double layers of wrapping paper are used.
- It can be equipped with auto hopper.
Technic Data:
Packing Material | BOPP+CPP,PET+CPP and other composite material |
Packing Size | Length:12-32mm, Width:12-26mm,Height:6-20mm |
Capacity | 10-600 grain/min |
Total Power | 2.5kw |
Net Weight | 1200kgs |
Overall Dimension | 2030x1250x1810mm |
