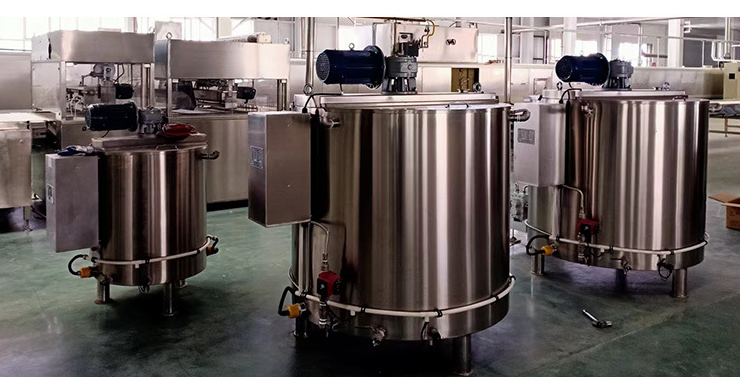

Chocolate Storage Tank

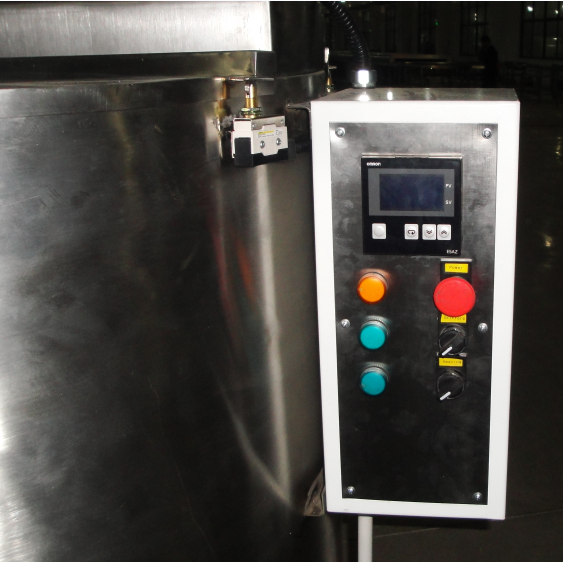

The chocolate tank is mainly used to store the finely ground chocolate paste. The temperature control system can effectively control the temperature of the chocolate paste by controlling the water temperature in the jacket. It has the functions of heating up, keeping constant temperature and cooling down. At the same time, the continuous stirring of the slurry by the agitator can achieve deodorization effect and effectively prevent oil separation.
Technical Data:
Type | max Capacity(L) | Styttirring Speed(rpm) | Motor power(kw) | Heating power(kw) | Weight(kg) | Outside dimension(mm) |
ME-BWG5000 | 5000 | 23.5 | 7.5 | 9 | 3000 | 2000X2710 |
ME-BWG3000 | 3000 | 23.5 | 5.5 | 9 | 2000 | 1700X2500 |
ME-BWG2000 | 2000 | 23.5 | 3 | 9 | 1500 | 1400X2500 |
ME-BWG1000 | 1000 | 23.5 | 2.2 | 6 | 1000 | 1220X1850 |
ME-BWG500 | 500 | 23.5 | 1.5 | 4 | 600 | 1000X1380 |
ME-BWG300 | 300 | 23.5 | 1.5 | 4 | 200 | 900X1250 |
ME-BWG200 | 200 | 23.5 | 1.1 | 4 | 180 | 800X1250 |
ME-BWG100 | 100 | 23.5 | 1.1 | 2 | 150 | 700X1250 |
