Feeding Pump

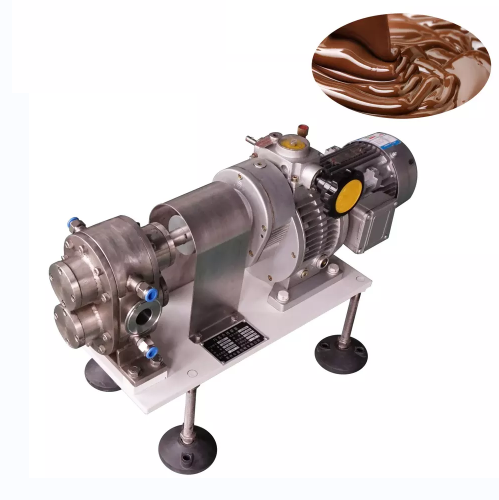

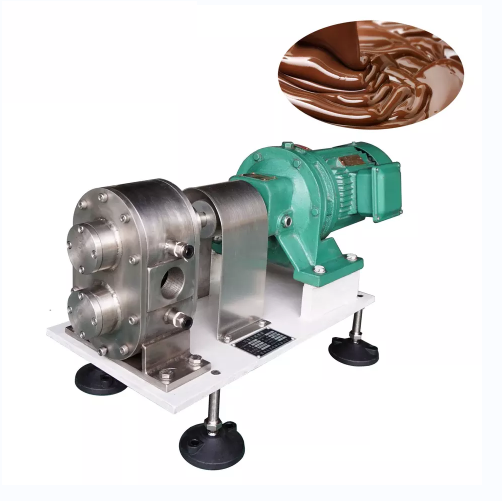

Chocolate pump is mainly used for the transmission and lifting of chocolate slurry and other cream mixtures between machines. and the pump body is jacketed for heat preservation. Customers can choose different models according to the required flow. This series of slurry pumps can be used alone or together with other production lines that need to automatically transport chocolate slurry.
Short delivery time and good quality, low MOQ
There are different capacity for selection, any OEM designs are welcome
Application:
The chocolate delivery pump is specialized for delivery of chocolate mass. The pump head and shell is stainless steel material, there are different molds for selection.
Technic Data:
| Type | Flow rate(L/min) | Delivery lift | Motor power(kw) | Net weight(kg) | Outside dimension (mm) |
| SJB32-C | 32 | 2 | 1.5 | 120 | 780X390X350 |
| SJB25-C | 25 | 2 | 0.75 | 105 | 700X300X350 |
| SJB60-T | 66 | 10 | 2.2 | 180 | 800X350X500 |
| SJB30-Y | 30 | 32 | 1.5 | 110 | 750X390X350 |
| SJB70-Y | 70 | 13 | 2.2 | 200 | 1100X450X450 |
