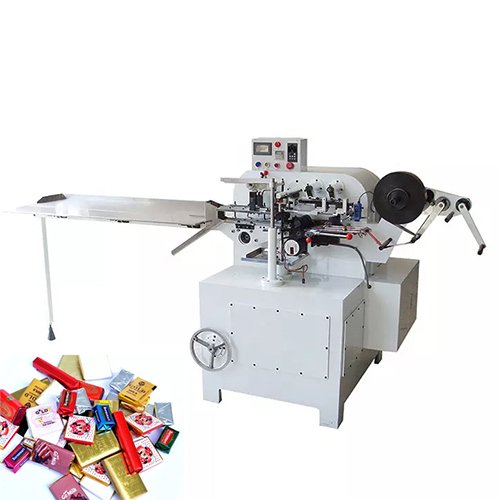

Fold Wrapping Machine With Envelope
- This chocolate wrapping machine is applicable to the automatic material management and packaging of chocolate, candy, tea and other products in the form of squares and terraces. It can realize different packaging methods (such as folding bags or envelope bags) and different sealing methods (glue dispensing sealing or heat sealing). The packaging is closely fitted and the folding angle is clear;
- Adopt precise high-speed cam transmission mechanism and reasonable mechanical design to improve the production efficiency and stability of the whole machine operation;
- The servo system of Panasonic brand, PLC and multi position sensor control system are adopted to realize the functions of double-layer paper feeding, automatic paper correction, no material no paper feeding, etc., with high yield;
- The touch screen of Panasonic brand is used to realize human-computer interaction, display in Chinese and English, and directly set various parameters, which is easy to operate;
- Equipped with high-speed automatic material handling machine, which can directly connect with the pouring machine or the distributor to realize full automatic feeding;
- Optional coding machine, labeling machine to achieve automatic coding and labeling function;
- With automatic alarm function for abnormal conditions, it is easy to maintain.
Technic Data:
Product size: Length 20-90mm, width:15-35mm, Height:4-25mm
Packing speed: 300pcs/min
Voltage: 380V/Hz
Power: 4.07kw
Size of machine: 3500x980x800cm
Weight of machine: 1600kg
Air Supply: 0.6MPa
Packing material:Paper, foil
